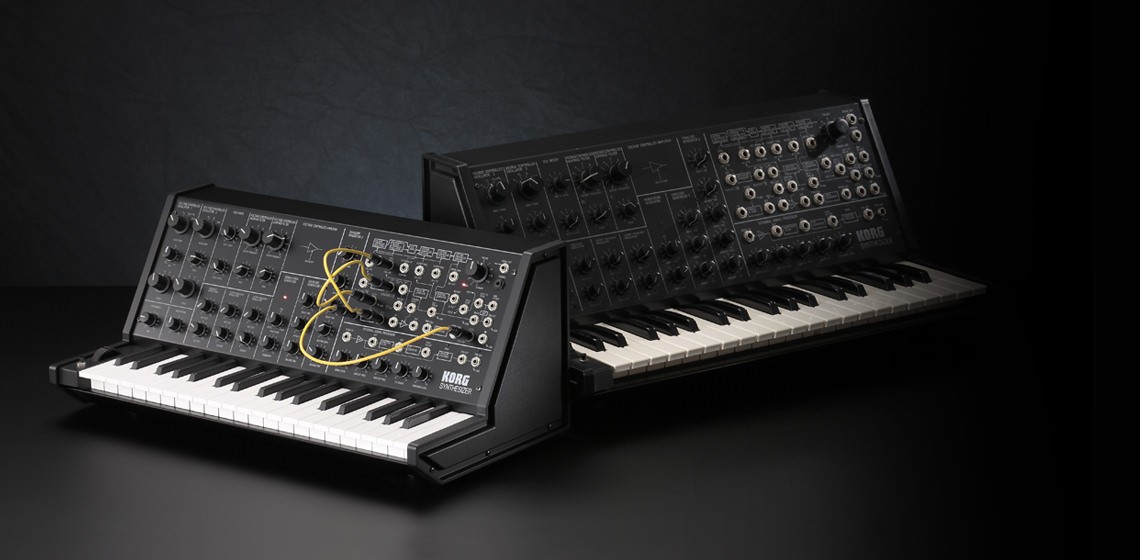

MS-20 mini
MONOPHONIC SYNTHESIZER
Support for Your Purchase
Learn More
Related Products
Related Accessories
News
- 2017.01.12
- KORG announces new products at Winter NAMM 2017!
- 2015.01.28
- MS20 Patch Book - A collection of new sounds to program on the MS20
- 2014.06.17
- Producer Steve Levine shows the MS-20 mini used with the VOX Trike Fuzz and Double Deca Delay effect pedals.
- 2014.06.11
- Korg MS-20 Mini High Five by yours truly Mr. Formidoni
- 2014.05.12
- Adding a Band-Pass Filter to the Korg MS-20 Mini
Main Specifications
- Keyboard
- C – C: 37-notes (3 octaves), mini keyboard designed specifically for the MS-20 mini
- Manual controller
- Control wheel (center click), Momentary switch -->GND
- Input and Output
-
Signal In: Amplifier Out,
Band pass filter Out,
CV Out (0 - +8.4V),
ENV Out (0 - +5V),
Trig Out (+5V-->GND),
Signal out: Signal output (mono 1/8" mini phone jack, 2Vp-p output impedance 3.5k Ω)
Head phones: Head phones output (Stereo 1/8" mini phone jack, 33 Ω 48mW),
USB: Type B, USB-MIDI Input/Output
*Only note messages (velocity is not used) can be transmitted and received.
MIDI: MIDI Input
*Only note messages (velocity is not used) can be transmitted and received.
- Power Supply
- DC9V
-
Dimensions:
(W x D x H) - 493 ×257 ×208 mm / 19.41 x 10.12 x 8.19 inches
- Weight
- 4.8 kg / 10.58 lbs.
- Accessories
- AC adaptor (9V/1.7A), Patch Cord x 10
Detailed Specifications
- Control Section
- 1. Keyboard
- C – C: 37-notes (3 octaves), mini keyboard designed specifically for the MS-20 mini
- 2. Voltage Controlled Oscillator 1 (VCO 1)
-
Scale (32', 16', 8', 4') (6 octaves, +cent, -cent)
Wave form (Triangle, Sawtooth, PW-Square, White Noise) (4 modes)
Pulse width adjust 1:1 - 1:infinity - 3. Voltage Controlled Oscillator 2 (VCO 2)
-
Scale (16', 8', 4', 2') (6 octaves, +cent, -cent)
Wave form (Sawtooth, Square, Pulse, Ring modulator) (4 modes)
Pitch (± 1 octave) - 4. VCO Master control
-
Master tune (± 100cent)
Portamento (max. 10sec)
FFrequency modulation intensity by MG/T.EXT (-5V - +5V)
Frequency modulation intensity by EG1/EXT (-5V - 0V) - 5. VCO Mixer
-
VCO 1 Level
VCO 2 Level - 6. Voltage Controlled High Pass Filter (VCF HPF)
-
Cutoff frequency (50Hz - 15,000Hz)
Peak (flat - self OSC)
Cutoff frequency modulation intensity by MG/T.EXT (-5V - +5V)
Cutoff frequency modulation intensity by EG2/EXT (-5V - +5V) - 7. Voltage Controlled Low Pass Filter (VCF LPF)
-
Cutoff frequency (50Hz - 15,000Hz)
Peak (flat - self OSC)
Cutoff frequency modulation intensity by MG/T.EXT (-5V - +5V)
Cutoff frequency modulation intensity by EG2/EXT (-5V - +5V) - 8. Envelope Generator 1
-
Delay time (10sec)
Attack time (10sec)
Release time (10sec) - 9. Envelope Generator 2
-
Hold time (20sec)
Attack time (10sec)
Decay time (10sec)
Sustain level (0V - 5V)
Release time (10sec) - 10. Modulation Generator (LFO)
-
Wave form (Positive Sawtooth - Triangle - Negative Sawtooth, Wide Pulse - Square - Narrow Pulse)
Frequency (0.1Hz ~ 20Hz) - 11. Manual controller
-
Cntrol wheel (center click)
Momentary switch -->GND - 12. Power switch and Volume
- Volume
- 13. Indicator
- LED (KBD trigger, Modulation Generator rate, Power ON)
- External Signal Processor
- 1. Control section
-
Input signal level
Low cut frequency (50Hz - 2,500Hz)
High cut frequency (100Hz - 5,000Hz)
CV adjust
Threshold level - 2. Input and Output
-
Signal In
Amplifier Out
Band pass filter Out
CV Out (0 - +8.4V)
ENV Out (0 - +5V)
Trig Out (+5V-->GND) - 3. Indicator (LED)
-
Peak indicator
Trigger indicator
- Patch Panel
- 1. Keyboard
-
Keyboard control voltage output (Exponential) (0 - +8V)
Keyboard trigger output (+5V-->GND)
VCO-1 + VCO-2 control voltage input (Linear response) (0 - +8V)
VCO-2 control voltage input (Linear response) (0 - +8V) - 2. VCO
- VCO-1 + VCO-2 external frequency control input (OCT/V) (-5V - +5V)
- 3. VCF
-
External signal input (3Vp-p max.)
External High pass filter cutoff frequency control input (2OCT/V) (-5V - +5V)
External Low pass filter cutoff frequency control input (2OCT/V) (-5V - +5V) - 4. VCO + VCF
- Total external modulation input (T.EXT) (-5V - +5V)
- 5. VCA
- External initial gain control input (0 - +5V)
- 6. EG
-
EG 1 envelope signal normal output (-5V - 0V)
EG 1 envelope signal reverse output (+5V - 0V)
EG 1 + EG 2 trigger input (-->GND)
EG 1 trigger input (-->GND)
EG 2 envelope signal reverse output (+5V - 0V) - 7. MG
-
Triangle output (Positive Sawtooth - Triangle - Negative Sawtooth) (5Vp-p)
Rectangle output (Wide Pulse - Square - Narrow Pulse)(0 - +5V) - 8. Noise Generator
-
Pink noise output (5Vp-p)
White noise output (5Vp-p) - 9. Sample and Hold
-
Clock trigger input (-->GND)
Sample signal input (5Vp-p max.)
S/H output (5Vp-p max.) - 10. Modulation VCA
-
Control voltage input (0 - +5V)
Signal input (-5V - +5V)
Signal output (-5V - +5V) - 11. Manual controller
-
Control wheel output (-5V<--0V-->+5V)
Momentary switch output (-->GND) - 12. Signal out
- Signal output (mono 1/8" mini phone jack, 2Vp-p output impedance 3.5k Ω)
- 13. Head phones
- Head phones output (Stereo 1/8" mini phone jack, 33 Ω 48mW)
- 14. USB
-
Type B, USB-MIDI Input/Output
*Only note messages (velocity is not used) can be transmitted and received. - 15. MIDI
-
MIDI Input
*Only note messages (velocity is not used) can be transmitted and received.
- Others
- Power Consumption
- 9W
- Power Supply
- DC9V
-
Dimensions
(W x D x H) - 493 ×257 × 208 mm / 19.41 x 10.12 x 8.19 inches
- Weight
- 4.8 kg / 10.58 lbs.
- Accessories
- AC adaptor (9V/1.7A), Patch Cord x 10
* All product, company, and standard names are trademarks or registered trademarks of their respective holders.
* Appearance and specifications of products are subject to change without notice. |
