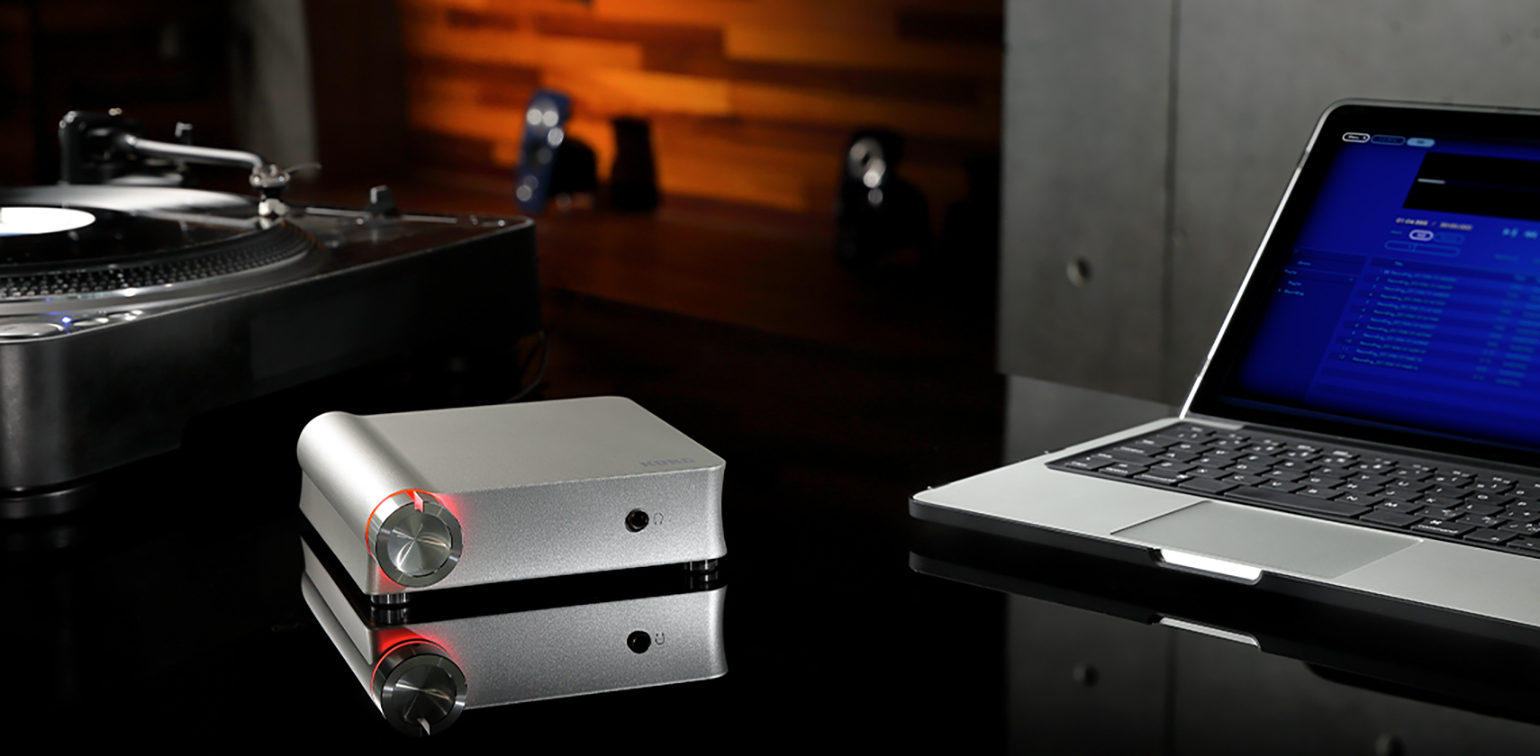

DS-DAC-10R

Share

Audio Interface

Number of Channels
2
Input Format (USB)
DSD: 2.8224MHz/5.6448MHz, 1bit
PCM: 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz, 16bit/24bit
Host Interface
USB2.0 (High Speed)
Audio Driver
ASIO 2.1, WDM, Core Audio
*We do not guarantee operation on Windows PCs with non-Intel CPUs.

General

Indicator
Power, Sample Rate, Rec Status
Power
USB bus power (5V, Max: 500mA)
Power Consumption
Max 2.5W
Dimensions (W x D x H)
155mm x 185mm x 49mm/6.10" x 7.29" x 1.93" (including protrusions)
Weight
1.2kg/ 2.65lbs.

Main Standards

Frequency Response Characteristics
10 Hz – 20 kHz ±1dB (fs=44.1 kHz/48 kHz)
10 Hz – 40 kHz ±1dB
S/N
105dB (TYP.) 20 Hz –20 kHz, IHF-A
THD+N
0.005% (TYP.) 20 Hz – 20 kHz

LINE OUT L/R

Connector
RCA pin Jack
Load Impedance
More than 10kΩ
Nominal Level
-6dBV

PHONES

Connector
φ 6.3mm stereo phone jack
Load Impedance
More than 16Ω
Maximum Level
70mW + 70mW @32Ω

LINE IN/PHONO L/R

Connector
RCA pin Jack
Load Impedance
LINE IN: 47KΩ
PHONO: 50KΩ
Nominal Level
LINE IN: -6dBV
PHONO: 5mVrms
Maximum Level
LINE IN: +6dBV
PHONO: 100mVrms
USB (Device)
Connector
Type B
Included items
USB Cable
“DSD” is a trademark.
All product, company, and standard names are trademarks or registered trademarks of their respective holders.
Appearance and specifications of products are subject to change without notice.
Windows
Microsoft Windows 7 (32Bit, 64bit), Microsoft Windows 8.1 (32Bit, 64bit), Microsoft Windows 10 (32Bit, 64bit), Microsoft Windows 11 (64bit)
Mac OS
Mac OS X 10.15 Catalina or later
