ARP ODYSSEY Module ARP ODYSSEY Module

SoundCloud

Share

Maximum Polyphony

2 voices for duophonic; normally monophonic
Controllers
Transpose Positions
2 octaves down, normal, 2 octave up
Proportional Pitch Control
b (Pitch down) Pad: about -2 / 3 octave
- (Modulation) Pad
# (Pitch-up) Pad: about +2 / 3 octave
Noise Generator
Noise Spectrum Types (white and pink)
Portamento
Maximum Speed
about 0.01 msec./oct
Minimum Speed
about 1.5 sec./oct
VCO (Voltage Controlled Oscillator)
Waveforms
Sawtooth, Square, Pulse (Dynamic Pulse)
Frequency Range
VCO-1 in low freq. mode, 0.2 Hz – 20 Hz: VCO-1 and VCO-2 (audio range) about 20 Hz – 20 kHz
Warm Up Drift
1/30 semitone from turn on max
Pulse Width
50 % – 5 %
Pulse Width Modulation
ADSR, +45 %
LFO, +15 %
Voltage Controlled Response
1 V/oct
Maximum Frequency Shifts
LFO sin wave, +1/2 oct.
LFO square wave, +1.5 oct.
ADSR, +9 oct.
S/H, +2 oct.
* VCO-1 is low note priority, VCO-2 is high note priority.
VCF (Voltage Controlled Filter)
Types
Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
Frequency Range
16 Hz - 16 kHz
Maximum Usable Q
30
Resonance
1/2 - self oscillate
Voltage Controlled Response
C3 key (left edge): 0 V
C6 key (right edge) 3 V
VCA (Voltage Controlled Amplifier)
Dynamic Range
80 dB
Ring Modulator
Type
Digital
Input Signal
VCO-1, VCO-2 (square wave)
Sample & Hold
Command Sources
Keyboard or LFO trigger
Sampled Signals
VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise
ADSR Envelope Generator
Attack Time
5 msec. - 5 sec.
Decay Time
10 msec. - 8 sec.
Sutatin Level
0 - 100 % or Peak
Release Time
15 msec. - 10 sec.
AR Envelope Generator
Attack Time
5 msec. - 5 sec.
Release Time
10 msec. - 8 sec.
Control Input Jacks
Pedal
6.3 mm monaural phone jack
Portamento Foot Switch
6.3 mm monaural phone jack
Audio Output Jacks
LOW
Connector
6.3 mm monaural phone jack
Maximum Output Level
-20 dBu@ 10 k ohm load
Output Impedance
10 k ohm
Audio Output Jacks
HIGH
Connector
XLR connector
Maximum Output Level
+4 dBu@ 1 k ohm load
Output Impedance
330 ohm
Headphones Jack
Connector
6.3 mm stereo phone jack
Maximum Output Level
50 mW + 50 mW@ 33 ohm load
Output Impedance
10 ohm
* Controllable by volume knob.
External Audio Input (Ext Audio Input) Jack
Connector
6.3 mm monaural phone jack
Maximum Input Level
-10 dBu
Input Impedance
22 k ohm
MIDI Connector
IN
USB Connector
Type B
CV IN/OUT Jacks
Keyboard CV (IN/OUT)
1 V/oct.
Connector
3.5 mm monaural phone jack
GATE IN/OUT Jacks
GATE IN
+3 V (minimum)
GATE OUT
+10 V, key down; 0 V all keys up
Connector
3.5 mm monaural phone jack
TRIG IN/OUT Jacks
TRIG IN
+3 V pulse min., 10 μsec. Duration minimum
TRIG OUT
+10 V pulse on key depression, 10 μsec. Duration
Connector
3.5 mm monaural phone jack
Power Supply
AC adapter jack (DC 9V)
Power Consumption
6.5 W
Dimensions (W x D x H)
496 x 265 x 89 mm / 19.53” x 10.43” x 3.50”
Weight
3.7 kg / 8.16 lbs
Design Variations

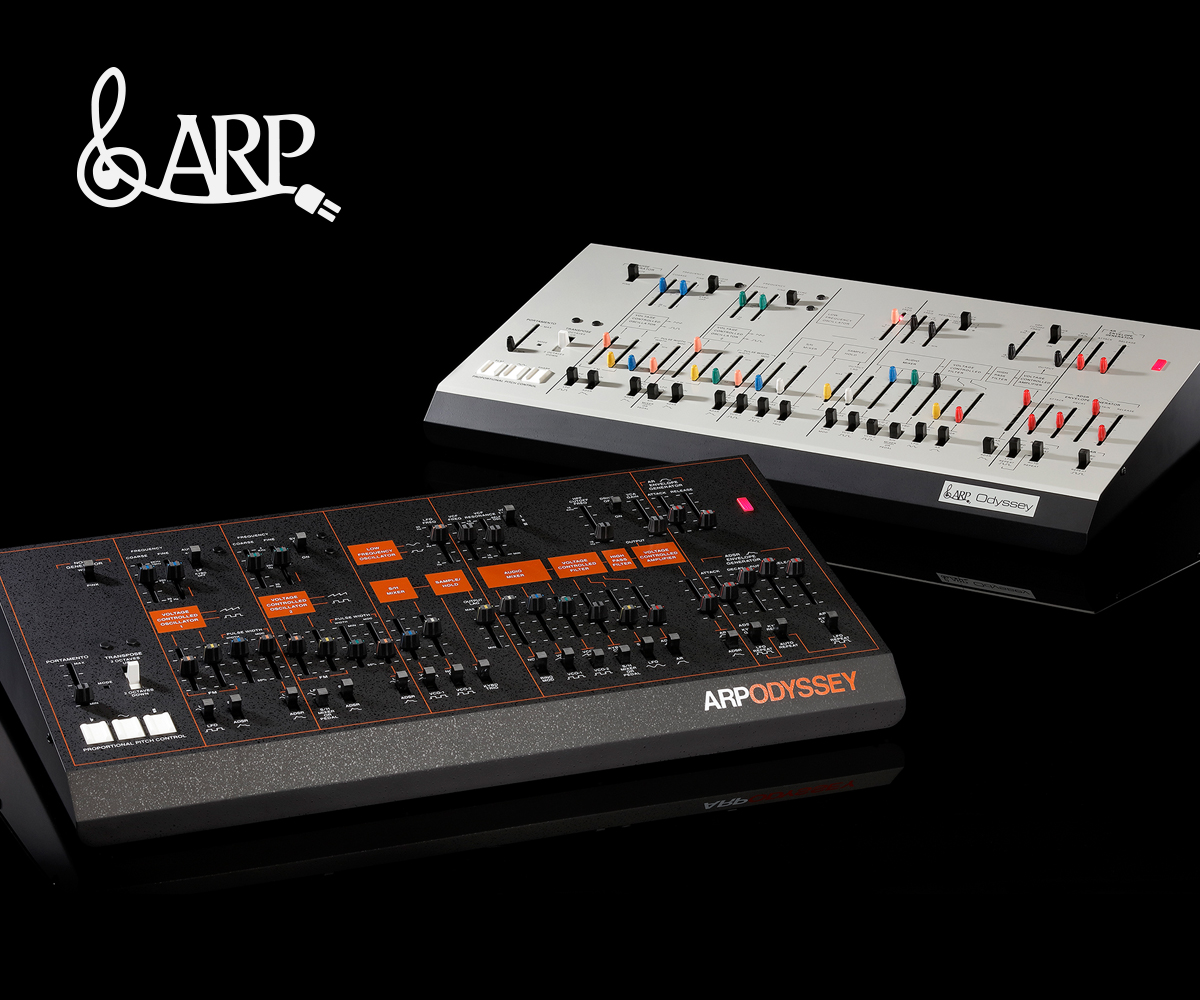

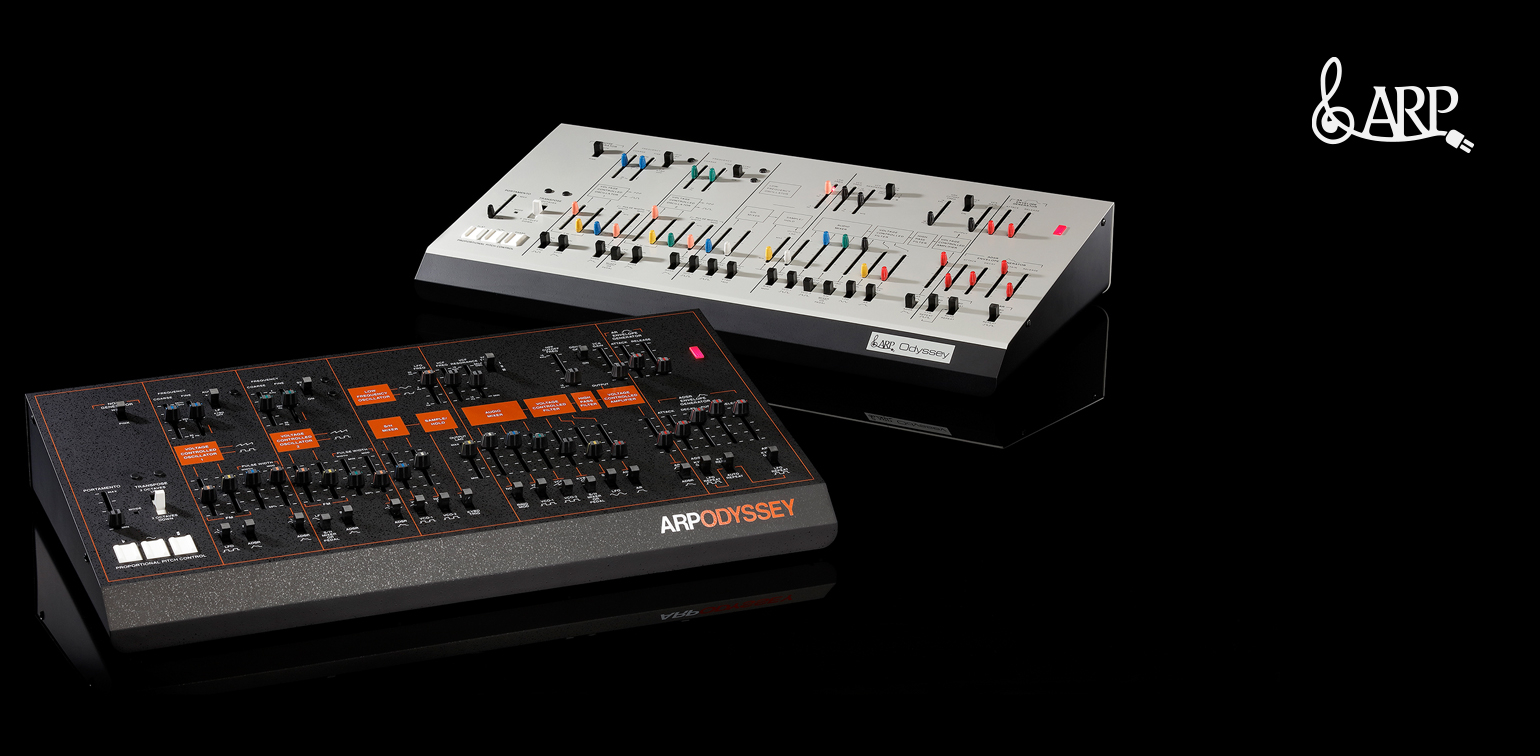

White (ARP ODYSSEY Module Rev1), Black and Orange (ARP ODYSSEY Module Rev3)
Included Items
AC adapter, phone cable, mini-phone cable
Accessories
Expression/Volume Pedal
XVP-20
Volume Pedal
VP-10
Pedal Switch
PS-3
Pedal Switch
PS-1
Patch Cables
SQ-CABLE-6
