KROSS KROSS

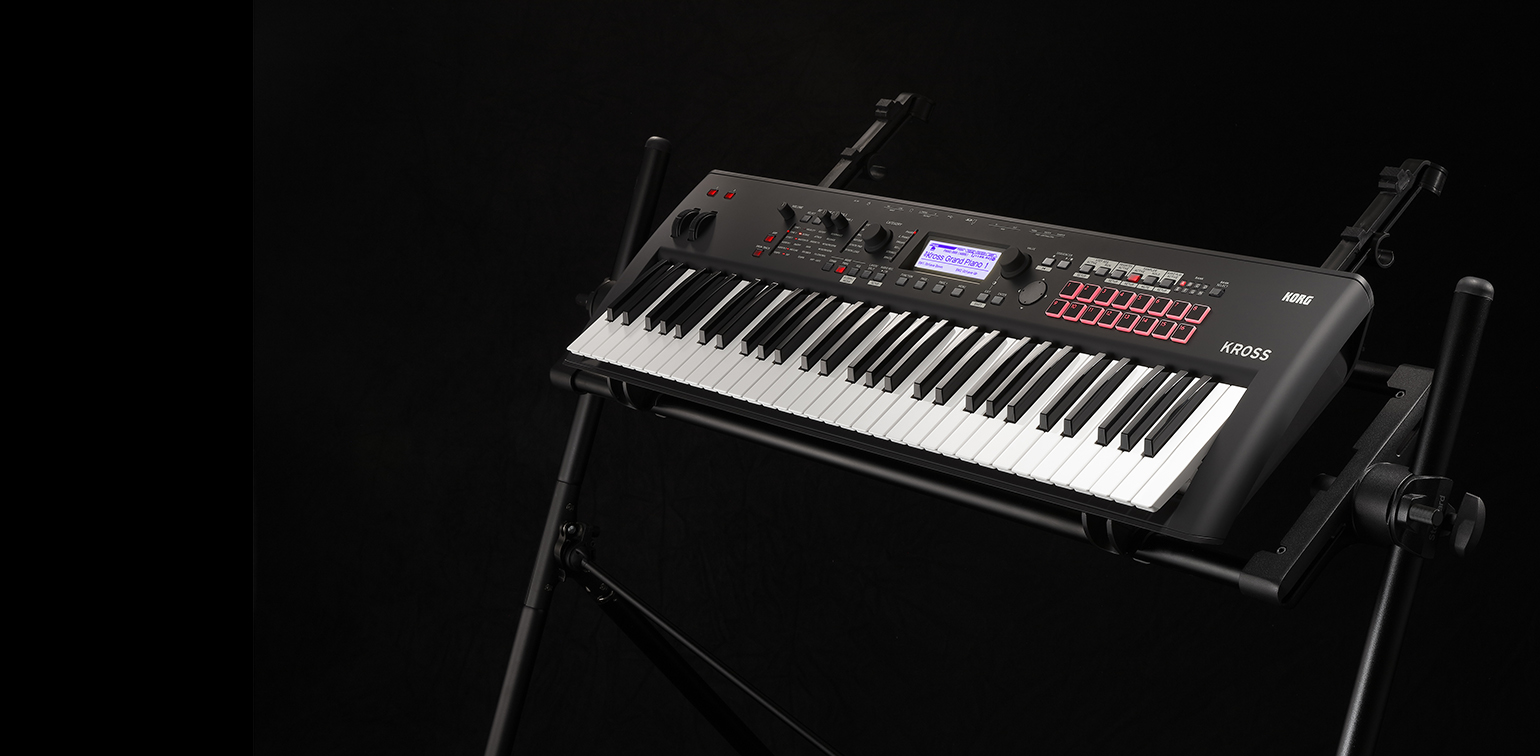

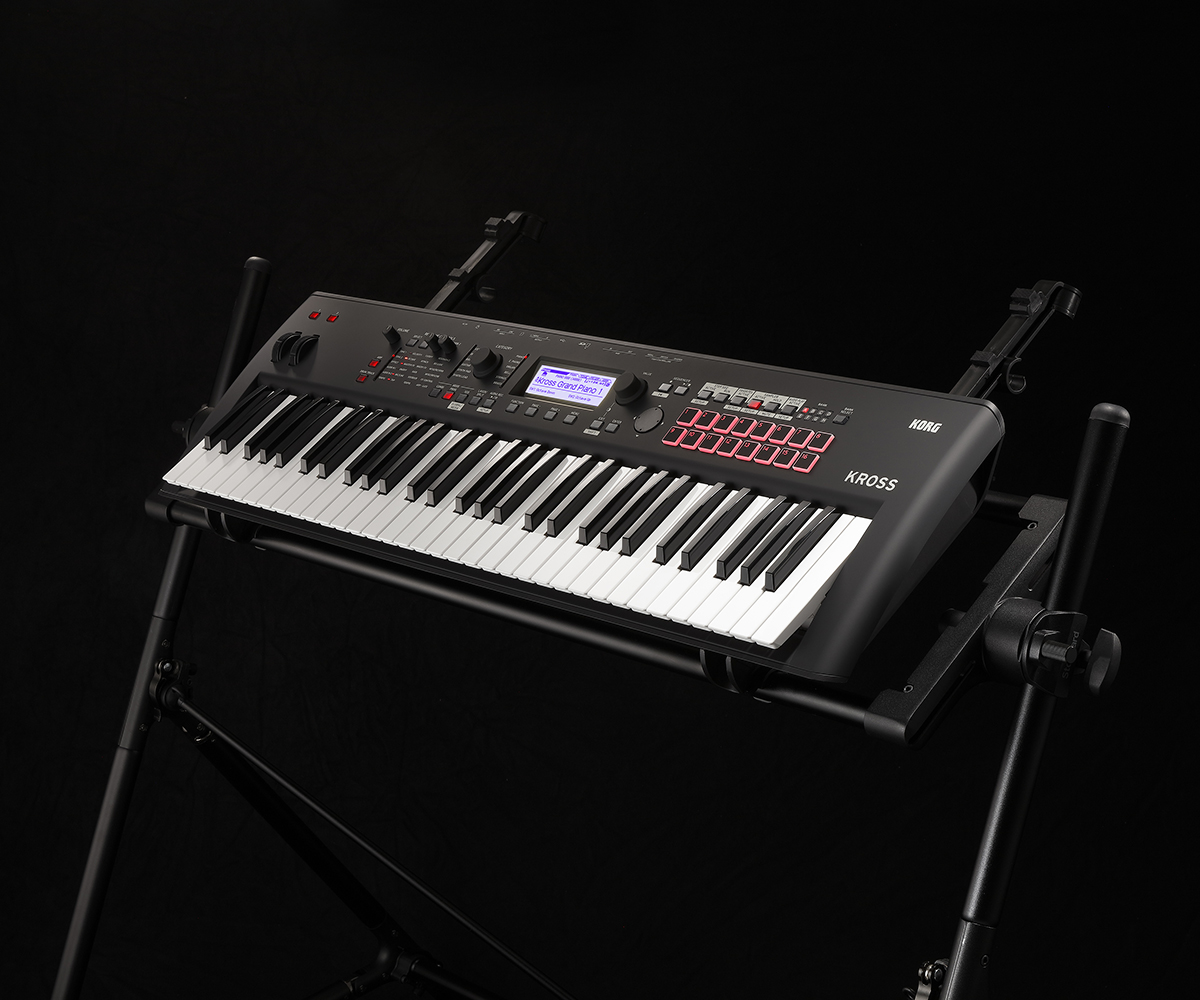

Standard-S-ABK stand is sold separately.

SoundCloud

Share

Keyboard

KROSS 2-61
61 keys (velocity sensitive; aftertouch not supported)
Normally C2–C7(adjustable in the range [C1…C6]–[C3…C8]
KROSS 2-88
88 keys NH (Natural weighted hammer action) keyboard (no aftertouch)
Normally A0–C8 (adjustable in the range [-A-1…C7]–[A1…C9])

* The NH keyboard delivers a playing feel similar to that of an acoustic piano, with low notes being heavier and high notes being lighter.

System

EDS-i（Enhanced Definition Synthesis - integrated）

Sound Engine

Maximum Polyphony
120 voices, single mode
60 voices, single mode

* The actual maximum polyphony will vary depending on oscillator settings such as stereo multisamples and velocity crossfading.
Preset PCM Memory
Approximately 128 MB (calculated as 48 kHz / 16-bit linear PCM data equivalent)
496 multisamples (including seven stereo), 1014 drumsamples (including 49 stereo)
Expansion PCM Memory
Approximately 128MB (*when converted to 48 kHz 16-bit linear PCM

* Used when loading option PCM
Program
Oscillator
OSC1 (Single), OSC1+2 (Double): Stereo multisamples are supported 4 velocity zones per oscillator, with switching, crossfades and layers.
Filters
Four types of filter routing (single, serial, parallel, 24 dB)
Two multi-mode filters per voice (low pass, high pass, band pass, band reject)
Modulation
For each voice, two envelope generators (Filter & Amp), two LFOs, two key tracking generators (Filter & Amp), and two AMS mixers. In addition, pitch EG, common LFO, and two common key tracking generators
Combination
Timbres
Up to 16 timbres, switchable via key zone or velocity zone, layer and crossfade supported, Tone Adjust function allows program settings to be offset
Master Keyboard functionality
These allow you to control external MIDI devices
Drumkits
Stereo and mono drumsamples. 4-way velocity switches with crossfades and adjustable crossfade shapes (Linear, Power, Layer).
The Number of Combinations/Programs/Drum Kits
User Combinations
896 Combinations (384 Preload)
User Programs
1280 Programs (768 Preload)
User Drum Kits
58 Drum Kits (42 Preload)
Preset Programs
265 Programs (256 GM2 Programs + 9 GM2 Drum Programs)
* Total number of preload programs and preset programs：1,075 (810 preload programs, 265 preset programs

*Click here for KROSS 2-88-MB.

Favorites

Number of memories
128 (16 favorites × 8 banks)

Effects

Insert effects
5 Insert Effects In-line processing; stereo in - stereo out.
Master effects
2 Master Effects Two effects sends; stereo in - stereo out.
Effects types
Total of 134 types (select from 74 types for insert effects, 101 types of master effect 1, and 120 types for master effect 2)
Modulation
Dynamic Modulation
Effects Control Bus
Stereo side-chaining for limiter, gates, vocoders, etc.

Polyphonic arpeggiators

Program mode
One arpeggiator
Combination mode
Two arpeggiators
Sequencer modes
Two arpeggiators
Preset arpeggio patterns
UP, DOWN, ALT1, ALT2, RANDOM
User arpeggio patterns
Number of arpeggio patterns: 1280 (1024 preload)
Number of tones: 12 tones,
Number of steps: up to 64 steps

Step sequencer

Program mode
Combination mode
Sequencer mode
One unit
Number of tones: 12 tones + 1 accent tone
Number of steps: up to 64 steps
* Can be created for each program, combination, and song.

Drum Track

Preset Patterns
772 patterns (Held in common with sequencer patterns.)
Other
Trigger Mode / Sync / Zone settings can be specified

Sequencer

Tracks
16MIDI Tracks
Number of Songs
Up to 128 songs
Resolution
1/480
Tempo
40.00–300.00 (1/100 BPM resolution)
Maximum Memory
Up to 210,000 MIDI events
Counter
Measure/Beat/Tick
Template Song
16 preset/16 user template songs
Preset Patterns
772 patterns (shared with Drum Track patterns)
Format
KORG (KROSS) format, SMF format 0 and 1

Pad sampler

Specifications
16 pads × 8 banks
Automatically saved on the SD card, and automatically loaded
Up to four pads can play simultaneously
Recording format
PCM audio format 48 kHz/16-bit
Recording time
Up to approximately 14 seconds of stereo sample for each pad
Import
WAVE format, file name extension: .wav, 44.1 kHz/16-bit, 48 kHz/16-bit, stereo

* 44.1 kHz is automatically converted to 48 kHz/i>
Edit
Waveform display editing functionality, start address and looping settings etc., normalize and other editing operations

Audio Recorder

Recording Format
PCM audio format 48kHz/16bit
Import
WAVE format (file name extension: wav ) 44.1kHz/16bit, 48kHz/16bit stereo

* 44.1 kHz is automatically converted to 48 kHz/i>
Export
WAVE format (file name extension: .wav) 48kHz/16bit, stereo
Recording Time
Maximum continuous recording time: 3 hours
Depends on the SD card used; approximately 90 minutes per 1 GB
Number of Songs
Up to 200 songs
Number of overdub recordings
Depends on the remaining capacity of the SD card
Counter
Hour/Min/Sec
Pad audio play

16 pads × 8 banks
Directly play back data from SD card
Multiple pads cannot be played simultaneously

Media

File, Utility, Information, additional PCM data management functionality

Controllers

General Control
Pitch bend wheel, Modulation wheel, SW1, SW2
Realtime Control
SELECT button, SWITCH button, KNOB1 knob, KNOB2 knob
Step Sequencer/Favorite/Pad Sampler/Pad Audio Play

Pads 1–16
STEP SEQ ACTIVE button, Run button
FAVORITES ACTIVE button
SAMPLER ACTIVE button, HOLD button
AUDIO PLAY ACTIVE button
BANK LEDA/B/C/D/E/F/G/H (also used by Step sequencer, Favorite, Pad Sampler, and Pad Audio Play)
Drum Track
DRUM TRACK button
Arpeggiator
ARP button
Audio Recorder
AUDIO REC button

User Interface

Display
240 × 64 pixel LCD backlight
Adjustable contrast (hold the EXIT button and turn the VALUE dial)
Category
CATEGORY dial, VALUE dial
MODE
COMBI button, PROG button, SEQ (GLOBAL/MEDIA) button
Value Controllers
Cursor buttons, EXIT,ENTER, FUNCTION, PAGE-, PAGE+, MENU buttons
Sequencer
REC button, START/STOP button
Quick Layer Split
LAYER/SPLIT button
Other
VOLUME knob

Control Input

DAMPER (Supports piano-style half-damper pedals as well as standard foot switches)
ASSIGNABLE SWITCH
ASSIGNABLE PEDAL

Audio Outputs (Analog)

AUDIO OUTPUT L/MONO, R
Connectors: 6.3 mm (1/4") phone jacks(TS unbalanced)
Output Impedance: 1.1k ohm stereo, 550 ohm mono (L/Mono only)
Maximum Level: +10.0 dBu
Load Impedance: 10k ohm or greater
Controllable by the VOLUME knob
HEADPHONE OUTPUT
Connectors: 3.5mm (1/8") stereo mini phone jack
Output Impedance: 33 ohnm
Maximum Level: 40 + 40 mW
Controllable by the VOLUME knob

Audio Inputs (Analog)

LINE IN
Connectors: 3.5 mm (1/8") stereo mini phone jack
Input Impedance: 1.1k ohm
Maximum Input Level: -42 to 0 dBu
MIC IN
Connectors: 6.3 mm (1/4") phone jacks(TS unbalanced)
Input Impedance: 33 ohm
Maximum Input Level: -48 to -6dBu
Phantom power or plug-in power is not supported.

Others

MIDI
IN, OUT
USB
USB connector TYPE B x 1, USB-MIDI interface, USB audio interface
SD Card Slot
One card slat

* Capacity recognized: SD memory cards up to 2 Gigabytes (GB). SDHC memory cards up to 32 Gigabytes (GB). SDXC memory cards are not supported.

Main Specifications

Power
AC adaptor power supply DC 9V
AA alkaline batteries x 6, or nickel-metal hydride batteries x 6
Battery Life
AA alkaline batteries x 6: Approximately 6 hours
AA nickel-metal hydride batteries (1900mAh) x 6: Approximately 7 hours

* Varies depending on the batteries used and the conditions of use.
Power Consumption
5 W
Dimensions (W x D x H)
KROSS2-61: 935 mm × 269 mm x 88 mm / 36.81" × 10.59" × 3.46"
KROSS2-88 1,448 mm × 383 mm × 136 mm / 57.01" × 15.08" × 5.35"
Weight
KROSS2-61: 3.8 kg / 8.38 lbs (excluding batteries)
KROSS2-88: 12.3 kg / 27.12 lbs (excluding batteries)
Included Items
AC adapter, Quick Start Guide

Accessories (sold separately)

Keyboard stand
KROSS2-61: Standard-S-ABK61
KROSS2-88: Standard-L-SV88
Soft case
KROSS2-61: SC-KROSS 2 61
KROSS2-88: SC-KROSS 2 88 / KROME 88
Expression/Volume Pedal
XVP-20
XVP-10
Foot Controller
EXP-2
Damper Pedal
DS-1H
Pedal Switch
PS-1
PS-3
* All products names and specification names are trademarks or registered trademarks of their respective owners.
* Appearance and specifications of products are subject to change without notice.
