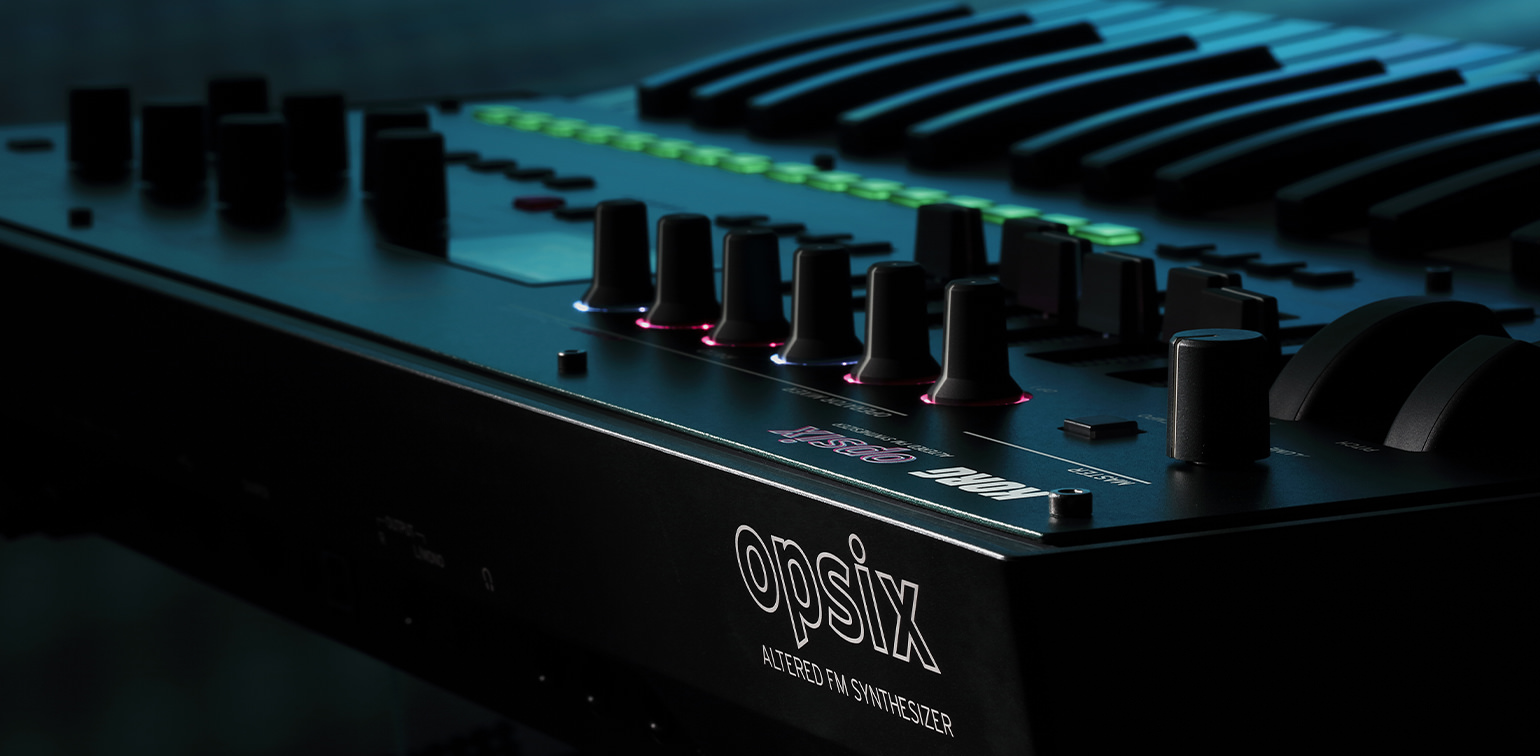

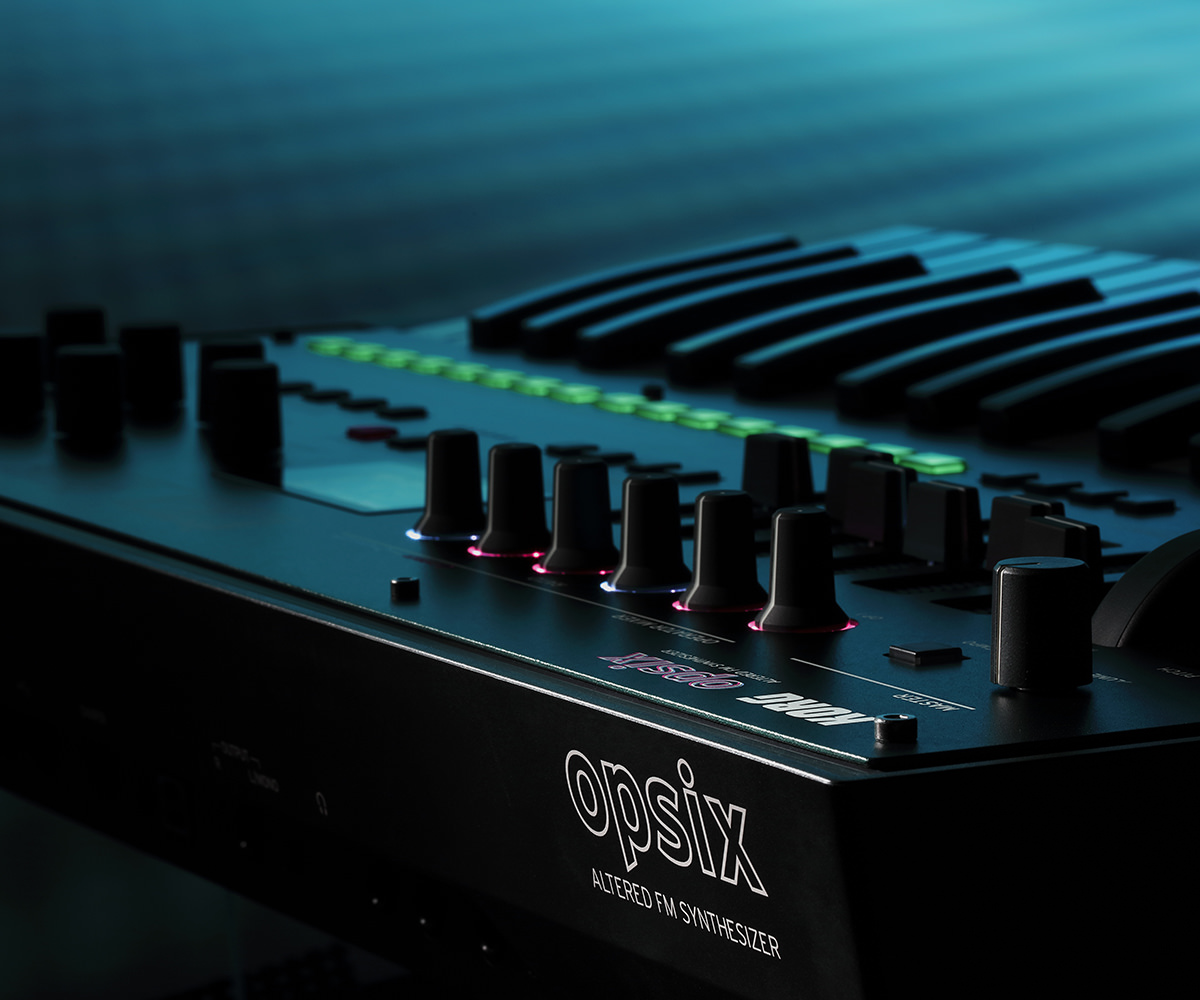

opsix

ALTERED FM SYNTHESIZER

Support

Learn More

Related Products

Related Accessories

Keyboard
37 keys (velocity and release-velocity sensitive)
Sound generating system
Altered FM sound generator
Maximum Polyphony
32 voices (or a max. of 24 voices, depending on the settings)
Structure

6 operators, 1 filter, 3 EGs, 3 LFOs, 3 effects, step sequencer, arpeggiator
Algorithm
40 presets + user algorithm (unique to each program)
Operator
5 modes (FM, Ring Mod., Filter, Filter FM, Wave Folder)
Oscillator waveform
21 waveforms (Sine, Sine 12bit, Sine 8bit, Triangle, Saw, Saw HD, Square, Square HD, Additive Saw3, Additive Sqr3, Additive Tri3, Additive 12345, Additive 1+2, Additive 1+3, Additive 1+4, Additive 1+5, Additive 1+6, Additive 1+7, Additive 1+8, Noise S/H, Noise White)
Filter
11 types (LPF 12, LPF 24, LPF MS-20, LPF POLY6, HPF 12, HPF 24, HPF MS-20, BPF 6, BPF 12, BRF 6, BRF 12)
EG
ADSR
LFO
23 waveforms (Triangle, Saw Down, Saw Up, Square, Sine, Sample&Hold, Guitar, Exp. Triangle, Exp. Saw Down, Exp. Saw Up, Step4 Triangle, Step6 Triangle, Step4 Saw Down, Step6 Saw Down, StepRnd:Time, StepRnd:Lvl&Time, StepRnd:Level, Random:Time, Random:Lvl&Time, Triangle + , Saw Down + , Saw Up + , Square +)
V.Patch
12 routings
Effect
30 types (Chorus, Unison Ensemble, Phaser, Phaser (BPM) , Auto Pan, Auto Pan (BPM), Flanger, Flanger (BPM) , Rotary Speaker, Auto Wah, Exciter, Enhancer, LFO Filter, 3-Band EQ, Distortion, Guitar Amp, Decimator, Grain Shifter, Master Limiter, Compressor, Delay, Delay (BPM) , Autopan Dly, Autopan Dly (BPM), Tape Echo, Tape Echo (BPM) , Early Reflection, Reverb, Shimmer Reverb, Spring Reverb)
Sequencer
Step Sequencer (up to 16 steps, up to 6 notes per step)
Motion Sequencer (up to 6 lanes)
Arpeggiator
7 patterns (MANUAL, UP, DOWN, ALT1, ALT2, RANDOM, TRIGGER) fault)
Number of programs
500 (250 preset programs and 250 user programs as the factory-set de
FAVORITE
64 (16 Slots × 4 Banks)
Controllers
MODULATION wheel, PITCH wheel, RATIO OP 1–6 knobs, LEVEL OP 1–6 sliders, DATA ENTRY A–F knobs
Inputs/outputs
Headphone (6.3 mm stereo phone jack)
OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks)
DAMPER (6.3 mm phone jack, half-damper not supported)
MIDI IN and OUT connectors
USB B port
Power supply
AC adapter (DC12V)
Power consumption
5 W
Dimensions (W × D × H)
565 × 338 × 90 mm / 22.24" × 13.31" × 3.54"
Weight
2.9 kg / 6.93 lbs
Included items
AC adapter
Accessories (sold separately)
DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch
* All product, company, and standard names are trademarks or registered trademarks of their respective holders.
* Appearance and specifications of products are subject to change without notice.
