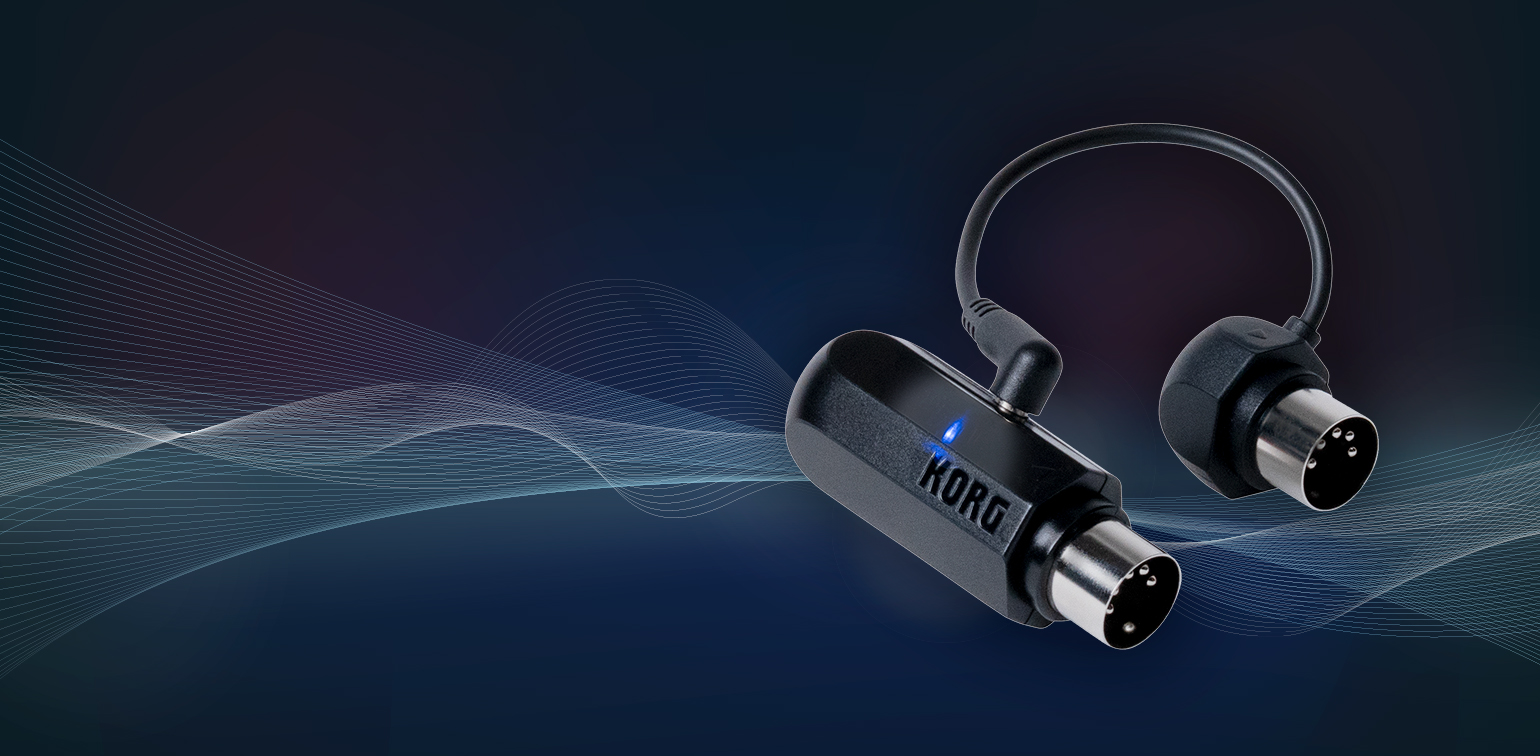

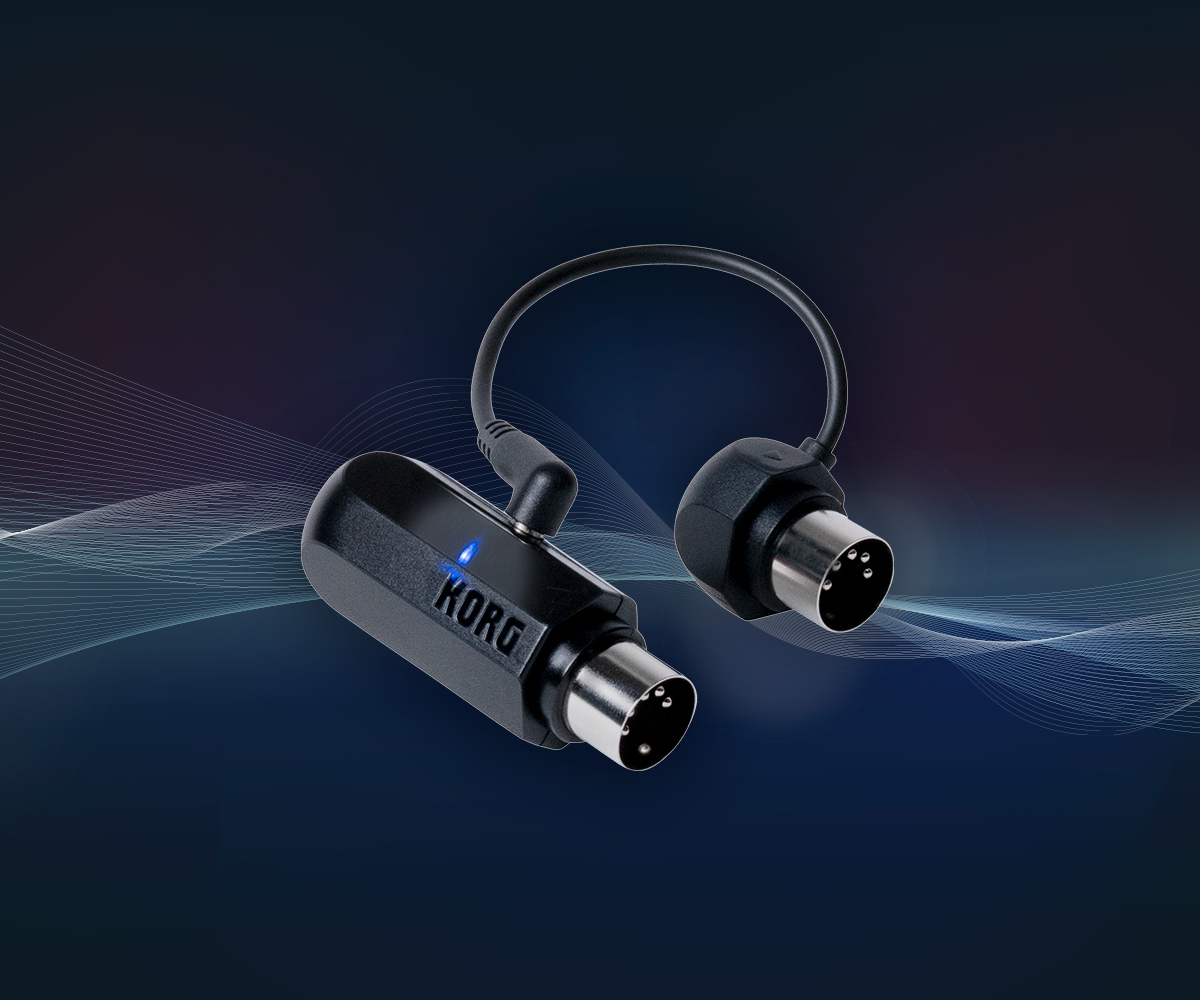

BM-1

BLUETOOTH® MIDI INTERFACE

Support

En savoir plus

Sites connexes

Produits correspondants

Bluetooth
Bluetooth 5, MIDI over Bluetooth Low Energy-Compliant
Connectors
MIDI IN, OUT (5-PIN DIN)
Compatible devices
MIDI devices with 5-pin DIN OUT, Bluetooth MIDI controllers, Mac, iPhone/iPad/iPod Touch that supports Bluetooth 4.0 or later
Supported OS
Windows, macOS, iOS/iPadOS
For details on OS compatibility for the BM-1, visit the KORG website.
* Group connections and firmware updates configured via the KORG BM-1 App are available only for iOS/iPadOS.
Latency
Approx. 3 ms (measured with BLE5 when using two BM-1 devices)
Communication range
20 m (when no obstacles are present)
Firmware updates
Available via the KORG BM-1 App on iOS/iPadOS
Power supply
Compatible with 5 V/3.3 V (via MIDI OUT)
Power consumption
37 mW
Dimensions (W x D x H)
Main adapter: 57 x 21 x 21 mm/2.24˝ x 0.83˝ x 0.83˝
Sub adapter: 27 x 21 x 21 mm/1.06˝ x 0.83˝ x 0.83˝
Weight
Main adapter: 12 g/0.42 oz
Sub adapter: 11 g/0.39 oz
Included items
Precautions
Dear Customer
Software/driver
KORG BM-1 App (iOS/iPadOS)
KORG Bluetooth MIDI Connect (Mac, iOS/iPadOS)
KORG BLE-MIDI Driver (Windows PC)
*Specifications and appearance may be changed without notice for improvement purposes.
*Bluetooth is a registered trademark of Bluetooth SIG, Inc. *All product and company names are trademarks or registered trademarks of their respective companies.
