Pitchblack Pro

Share

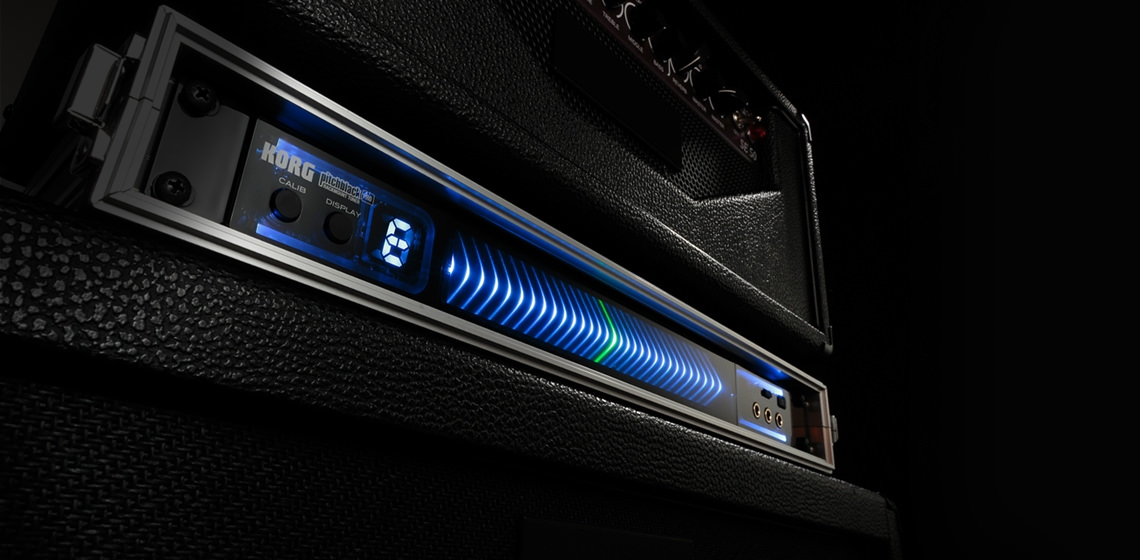

Pitchblack Pro

RACKMOUNT TUNER

Support for Your Purchase

Specifications

Tuning:
12 Note Equal Temperament
Detection Range:
E0 (20.60 Hz) ~ C8 (4186 Hz), Sine Wave
Calibration Range:
A4 = 436-445 Hz (1 Hz steps)
Detection Accuracy:
+/- 1 cent
Display Mode:
Regular / Strobe / Half Strobe
Input impedance:
1 M Ω (when tuner is on)
Connectors:
Front Side:
Input 1 (mono 1/4" jack) for Guitar /Bass
Mute (mono 1/4" jack)
Cable Check (mono 1/4" jack)

Rear Side:
Input 2* (mono 1/4" jack)
*This jack is intended for use with the line output from an effect unit or keyboard; this cannot be used simultaneously with the INPUT 1 jack Output (mono 1/4" jack) DC IN (9V)
Power supply:
DC 9V, AC adapter(KA350)
Dimensions:
(W x D x H)
Tuner Only: 430 x 49 x 44 mm / 16.93 x 1.93 x 1.73 inches (including protrusions)
When used with the rackmount adapters: 482 x 49 x 44 mm / 18.98 x 1.93 x 1.73 inches (including protrusions)
Weight:
363 g / 12.80 Oz. (Tuner Only)
Accessories:
AC adapter, Screw x 4, Washer x 4, Rack mounting adapter x 2
* All products names and specification names are trademarks or registered trademarks of their respective owners.
* Specifications and appearance are subject to change without notice for improvement.
