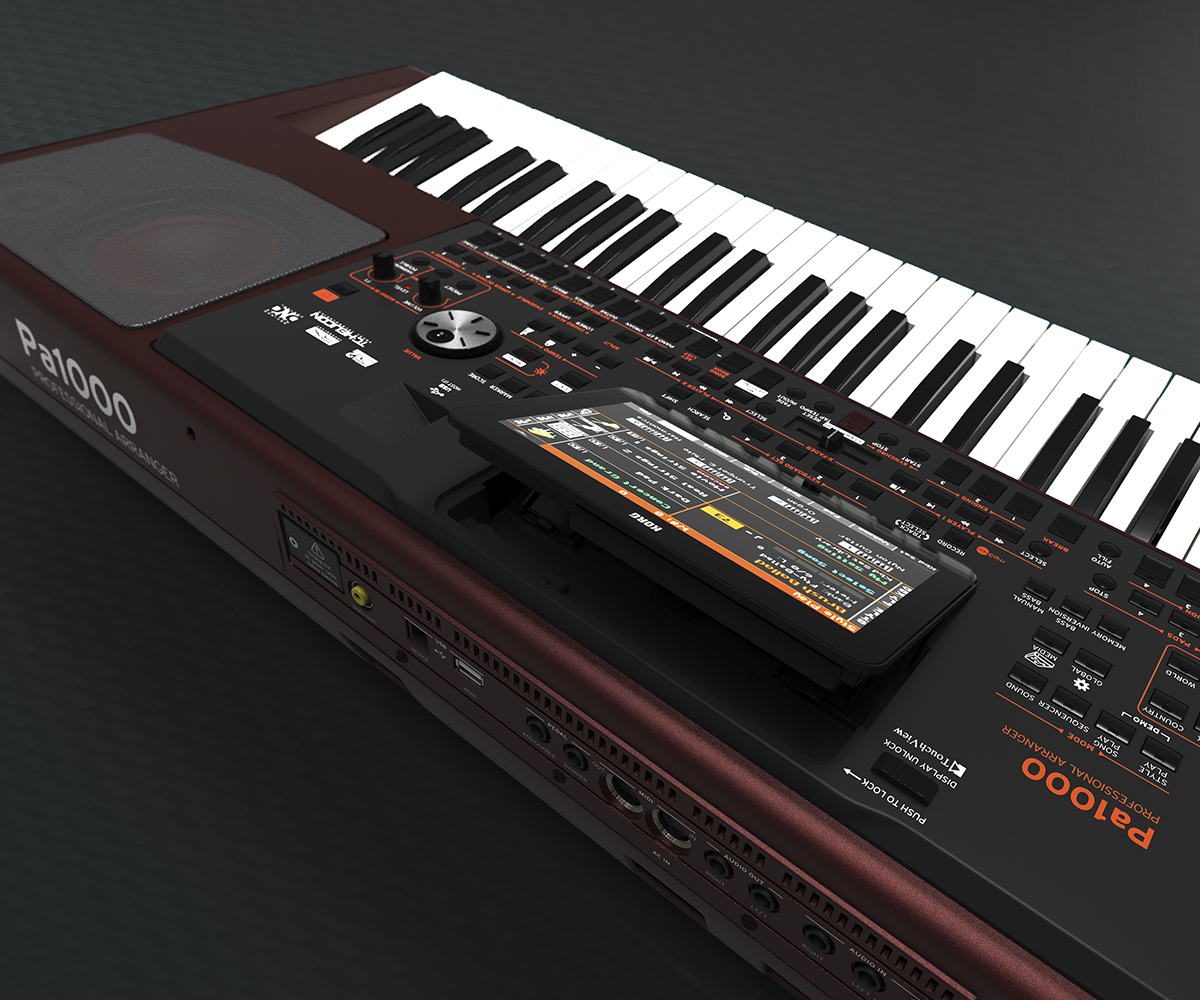

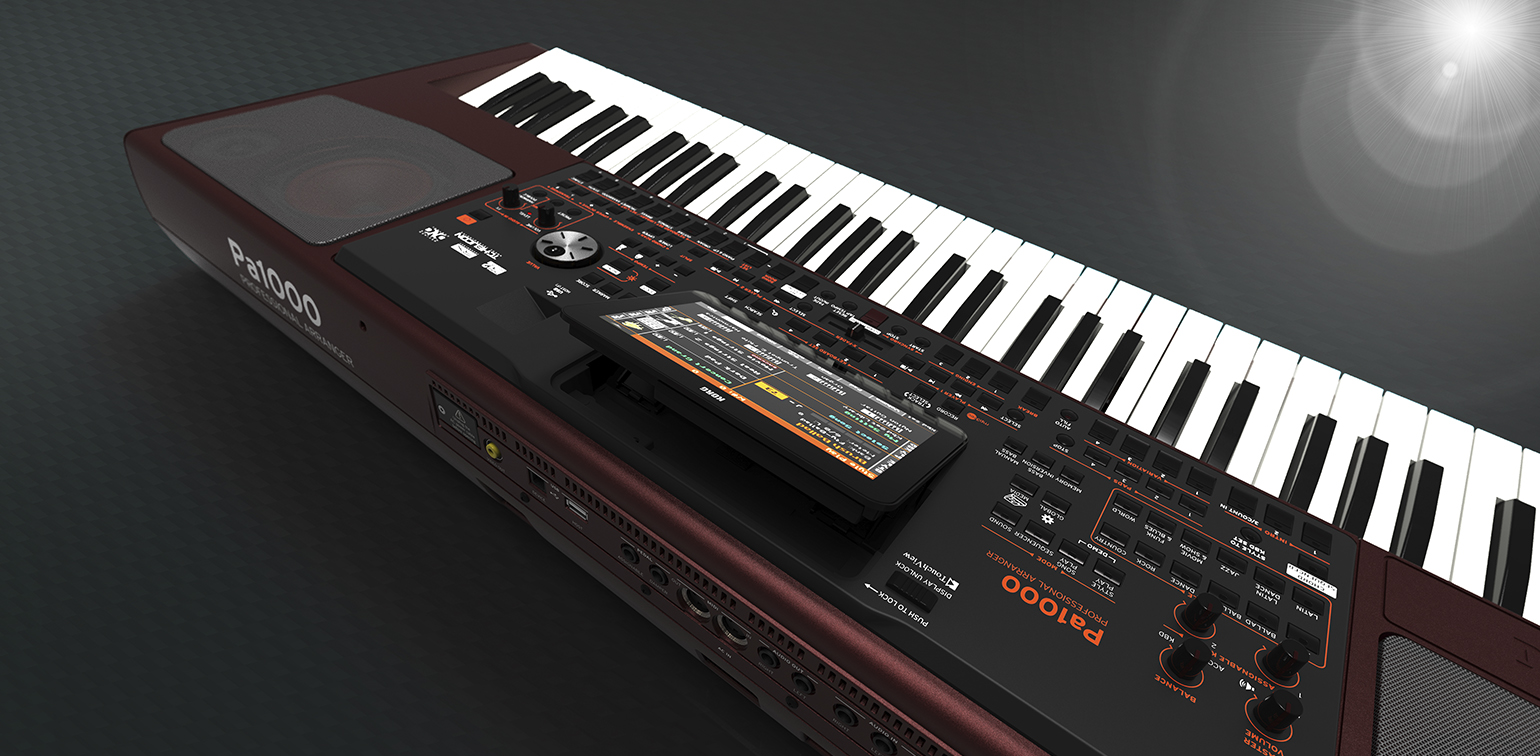

Pa1000 Pa1000

SoundCloud

Share

Keyboard

61 semi-weighted keys (C2 – C7) with velocity and aftertouch

System

Upgradable operating system, Multitasking, Load while play

Sound Generator

EDS-X (Enhanced Definition Synthesis – eXpanded)
Filters with resonance, 3-band EQ on each Sound

Polyphony

128 voices, 128 oscillators

Effects

Accompaniment/Song:
2 insert effects; 2 master effects (148 types)
Keyboard Sounds
1 insert effect; 2 master effects (148 types)
Final mastering effects
Limiter, Master EQ
Voice Processor
EQ, Compressor, Gate, 3-voice Harmonizer (or Double), 2 x FX. Harmonizer, Double: Technology by TC•Helicon®
Presets
More than 30 Factory, 64 User
Guitar Processor
3 x FX. Presets: 45 Factory, 64 User

Sounds / Drum Kits

Factory
More than 1,750 Factory Sounds, including two multilayer Stereo Pianos with damper and body resonance, GM/XG sound sets and 107 Drum Kits
User
512 Sounds, 256 Drum Kits
Digital Drawbars
9 footages, percussion, key on/off, leakage, rotary speaker effect
DNC (Defined Nuance Control) Technology, Natural Ambience Drums Full Sounds/Drum Kits editing

Sampling

User PCM Sample memory
300 MB compressed (equivalent to 600 MB linear data)
Loads KORG, WAV, AIFF and SoundFont™ formats
Saves KORG, WAV and AIFF formats
Full Edit, Time Slice, Sampling

Styles

Factory
More than 430 Factory Styles, freely reconfigurable sets
User
1,152 locations, including User and Direct banks
Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style; Style Settings (Sounds and Arranger parameters) on each Style
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style/Pad Record with Step Record, Track and Event Edit
Style Creator Bot (MIDI Song to Style Converter)
Style controls
3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to Keyboard Set Mode

Chord Sequencer


Chord Sequence recorder and player in Style Play mode
Chord Sequences can be saved to Style and SongBook Entries
Edit functions
Delete, Copy from Style/SongBook, Import/Export from/to SMF

Keyboard Set Library


Memorize Keyboard Sound settings
Factory
More than 300 Keyboard Sets, freely reconfigurable
User
864 locations, including User and Direct banks
‘My Setting’ special Keyboard Set

KAOSS FX

Automatic MIDI FX generator
More than 65 Factory Presets

Song Play


Patented XDS Crossfade Dual Sequencer Player with X-Fader control
Supported formats
MID, KAR, MP3+Lyrics, MP3+G
Two Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
Lyrics, Score, and Chord data can be displayed on screen, or on an external video monitor
Markers with Add, Delete, Edit and Loop functions
Jukebox function

MP3 Player / Recorder

Double MP3 Player and MP3 Recorder
Transpose (+6/-5 semitones), Tempo change (±30%)
Vocal Remover
Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, KAOSS Effects

Sequencer

Quick Record (Backing Sequence), Multitrack and Step Record functions
Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format

SongBook

Fully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modes
User definable Set Lists, with Entries selectable from the control panel
Filtering and sorting options

Compatibility

Pa-Series models
Styles, Performances/Keyboard Sets, Programs/Sounds, Songs, SongBook Entries, Pads
‘i-Series’ models
Styles

Pads

Four Assignable Pads + Stop buttons
Pad Record function

Controls

Master Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Quarter Tone and Arabic Scale memorized inside Keyboard Sets, Joystick, Audio In Volume, Mic FX Level, Harmony/Double On/Off, Mic/Guitar Preset, Audio In Mute ,2 Assignable Knobs, 3 Assignable Switches, Tempo +/-, Tempo Lock, Metronome On/Off, Dial, Search, Shift, Chord Scan (Lower, Upper), Split, Track Select, Record
Virtual Quarter Tone SubScale Keypad, 4 x Scale Presets

Control Inputs

Damper pedal (supports half-pedaling with the optional DS-1H pedal)
Assignable pedal/switch

Audio Inputs

Line (Left/Right)
1/4” jacks, +20dBm, 12k Ohm
Mic/Guitar (Left)
1/4” jack, with Gain control (0 — +40dB)
12k Ohm (Mic) / 500k Ohm (Guitar)

Audio Outputs

Left/Right
1/4” jack, +21dBm, 0.003% THD+N@+18dBm
Headphone output
1/4” jack, 16-200 Ohms (50 Ohms suggested)

Speaker System

Amplification
2 x 33 W
Speakers
2 x 100 mm woofers in bass reflex box, 2 x 25 mm dome tweeters

MIDI

IN, OUT
Standard MIDI connectors
USB to MIDI using the USB ports
Eight user definable MIDI Setups

USB

Type A
HOST, for memory and controllers x 2 (front/rear)
Type B
DEVICE, for personal computers and tablets x 1 (rear)
2.0 Hgh-Speed connections (480 Mbit/s).

Storage

Internal memory
960 MB
USB external drives (drive not included)
microSD card (not included); rear panel slot with plastic cover

Display

7” Wide capacitive color TouchView™ TFT display – Manual tilt system

Video Out

HDMI connector

Clock

Internal System Clock

Power Consumption

100–240 Volts, 50/60 Hz, 25 Watt normal / 0.3 Watt in standby

Dimensions (W x D x H)

1030 x 378.3 x 133 mm / 40.55" x 14.89" x 5.36" (without music stand; height with music rest: 355.8 mm / 14”)

Weight

10.75 kg / 23.7 lbs

Included Items

AC Power Cable, Music Stand, Quick Guide manual

Accessories

EXP-2 Foot Controller, XVP-10 Expression/Volume Pedal
DS-1H Damper Pedal (supports half-pedaling)
PS-1, PS-3 Pedal Switch
VOX V860 volume pedal
* All products names and specification names are trademarks or registered trademarks of their respective owners.
* Appearance and specifications of products are subject to change without notice.
